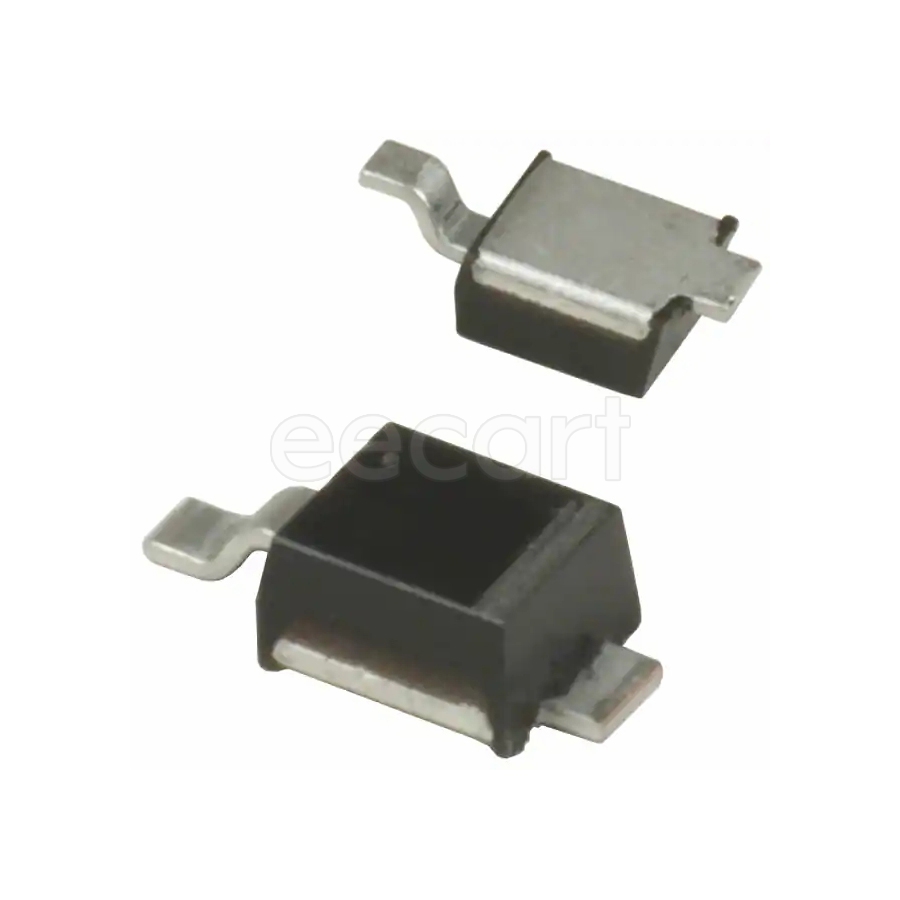

MBRM120ET3G
Manufacturer:
On Semiconductor
Mfr.Part #:
MBRM120ET3G
Datasheet:
Description:
Schottky Diodes DO-216AA Screw Single Forward Current:1 A Forward Voltage:530 mV Max Repetitive Reverse Voltage (Vrrm):20 V Max Forward Surge Current (Ifsm):50 A
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 20 V |
| Length | 2.05 mm |
| Width | 1.15 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 2.18 mm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Current Rating | 1 A |
| Output Current | 1 A |
| Forward Current | 1 A |
| Forward Voltage | 530 mV |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Average Rectified Current | 1 A |
| Breakdown Voltage | 19 V |
| Max Reverse Leakage Current | 10 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 20 V |
| Element Configuration | Single |
| Max Surge Current | 50 A |
| Forward Surge Current (Ifsm) | 50 A |
| Peak Non-Repetitive Surge Current | 50 A |
| Reverse Current | 10 µA |
| Schedule B | 8541100080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 months ago) |
Stock: 21214
Distributors
pcbx
pcbxUnit Price$0.36334
Ext.Price$0.36334
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36334 | $0.36334 |
| 10 | $0.22228 | $2.22280 |
| 50 | $0.17707 | $8.85350 |
| 100 | $0.14106 | $14.10600 |
| 500 | $0.10772 | $53.86000 |
| 1000 | $0.08806 | $88.06000 |
| 3000 | $0.08268 | $248.04000 |
| 5000 | $0.07763 | $388.15000 |
| 10000 | $0.06635 | $663.50000 |
